Introduction

airgoodies is a utility library for Apache Airflow, that allows easy development for Apache Airflow by removing a lot of boiler plate code form the end user.

Using airgoodies helps in keeping your dags smaller and more maintainable.

Installation

airgoodies is available for specific Apache Airflow and Python versions:

Please view the matrix below to choose which one best suites you:

Keep in mind that those are only the versions tested and that it is known to be working, but is should not be limited by it, so a version might not be documented here, but could work for you.

airgoodies can be installed in many different ways:

• Install using PyPi directly into your Airflow deployment: Install using Pypi
• Install directly from sources: Install from sources

Install using PyPi

airgoodies is available directly from PyPi and can be installed on your Apache Airflow by updating your requirements.txt:

# requirements.txt
airgoodies==0.0.4

For all the available versions please check here

Install from Sources

TODO

Features overview

Task generation using YAML Files

airgoodies enables the ability to dynamically create tasks using YAML files with a specific syntax.

Currently the supported syntax offers the following commands:

$task_name: # This is the name that will appear for the task (task_id)
  $task: <task> # The task to execute
  config: # The configuration of the task
    $options: $values
    airgoodies_transform_method | custom_transform_method: $method_name

Options for $task:

Options for config:

Config enables the configuration of the task, and the options are defined by the $task option you have chosen.

Pre-defined airgoodies tasks

Airgoodies supports various operations out of the box, requiring minimum configuration.

• load_from_s3_to_mongo_table: Offers the ability to load a file from an S3 bucket directly into a MongoDB table, giving the ability to edit the data before saving.

load_from_s3_to_mongo_table

Overview

The load_from_s3_to_mongo_table task, enables the ability to load a file (currently supported .csv, .xls, .xlsx) directly from an S3 bucket into a MongoDB table, offering the ability to perform actions in between.

Transform method options

Example YAML syntax

example_task:
  airgoodies_task: load_from_s3_to_mongo_table
  config:
    airgoodies_transform_method: print_table_contents
    output_table_name: my_output_table

The above YAML defines a task that will load a file from the configured bucket, print it's contents and export it into a MongoDB table.

Example with custom transform method

Let's say we want to load a file from an S3 Bucket, modify the contents and then save the output to MongoDB.

For this case consider the following file population.csv

city,population;year
Athens,3153000;2021
Athens,3154000;2022
Patras,215922;2021
Patras,213984;2011

And instead of loading all the cities, we need to load only the ones for Athens.

In this case we need to create our own custom method and link it.

Considering the following structure:

root/
    \_ dags/
        \_ my_dag.py
            \_ custom/
                \_ transform.py

We create a new function in transform.py:

import pandas as pd
import logging


def keep_athens(data: pd.DataFrame) -> pd.DataFrame:
    """
    Function that loads the pandas DataFrame and removes the lines that are not
    related to Athens.
    """
    logger: logging.Logger = logging.Logger('airflow.task')
    logger.info('Running custom transform method: keep_athens')

    data.drop(data[data['city'] != 'Athens'].index, inplace=True)

    logger.info(f'New data:\n{data}')
    return data  # Return the DataFrame to write it in MongoDB

Now, we need to create a YAML file that creates our task in Airflow. The file should look like this:

my_load_data_task:
  airgoodies_task: load_from_s3_to_mongo_table
  config:
    custom_transform_method: custom.transform.keep_athens # Path to our function

airgoodies examples

Description

The following example demonstrates how to create a project from scratch, using a dockerized Airflow project, an S3 Bucket and a MongoDB Connection.

In this example we will demonstrate how to use airgoodies to quickly set up a workflow that will load a .csv file from our S3 Bucket, filters its data to extract what we need and afterward save the result into a MongoDB table.

You can find the source code for this example here

Prerequisites

In order to execute the following example locally, we need to have:

• a valid Docker installation
• a docker-compose installation
• an Amazon S3 bucket

Basic setup

The basic setup of the project, begins with the structure:

We create a new project directory:

mkdir my_project && cd my_project

In this project we need to create the folder structure as shown bellow:

my_project/
    \__ Dockerfile
    \__ docker-compose.yaml
    \__ requirements.txt
    \__ dags/
            \__ __init__.py
            \__ my_dag.py
                \__ custom
                    __init__.py
                    transform.py

To generate this structure we run the following command:

touch Dockerfile
touch docker-compose.yaml
touch requirements.txt
mkdir dags/
cd dags
touch __init__.py
touch my_dag.py
mkdir custom
cd custom
touch __init__.py
touch transform.py

Create the Dockerfile

Inside the Dockerfile we paste the following:

# Custom image for Airflow 2.7.2 and Python version 3.11
FROM apache/airflow:2.7.2-python3.11

COPY requirements.txt .

# Upgrade PIP
RUN pip install --upgrade pip

# Install the requirements for local dev
RUN pip install -r requirements.txt

This will create an Apache Airflow v2.7.2 with Python 3.11, next open our docker-compose.yaml and paste the content from the example's code.

This will create a full Airflow deployment locally with an associated MongoDB for our example.

Create the requiements.txt

Before starting anything on docker we need to install our requirements.

For that, we open our requirements.txt and insert the following:

# Add the requirement for `airgoodies`
airgoodies==0.0.4

Starting the instance

Now, all we have to do is build and start our airflow deployment:

docker-compose build
docker-compose up -d

After a while, we can navigate to http://localhost:8080, use username: airflow and password: airflow to view the console.

Setting up the environment

The first step we need to do is to configure the variables used by the DAG, and specifically used by the airgoodies modules that we are going to user.

We navigate to the Apache Airflow -> Admin -> Variables page, and select the Choose file option, and insert the following file (airgoodies-variables.json):

{
  "csv_loader.airgoodies-mongo-db-connection-url": "mongodb://root:root@mongo:27017",
  "csv_loader.airgoodies-mongo-db-name": "data",
  "csv_loader.airgoodies-aws-s3-connection-name": "s3_conn",
  "csv_loader.airgoodies-aws-s3-default-bucket": "<s3-bucket-name>",
  "csv_loader.airgoodies-dag-config-file-key": "csv_loader_dag_config.yaml",
  "csv_loader.airgoodies-task-aws-load-from-s3-to-mongo-input-file-variable": "input_file"
}

(Replace the <s3-bucket-name> with the name of your S3 Bucket selected for the example).

And afterwards select the Import Variable option, to insert the Variables into our Airflow instance.

Next step is to create the S3 connection defined in the csv_loader.airgoodies-aws-s3-connection-name variable.

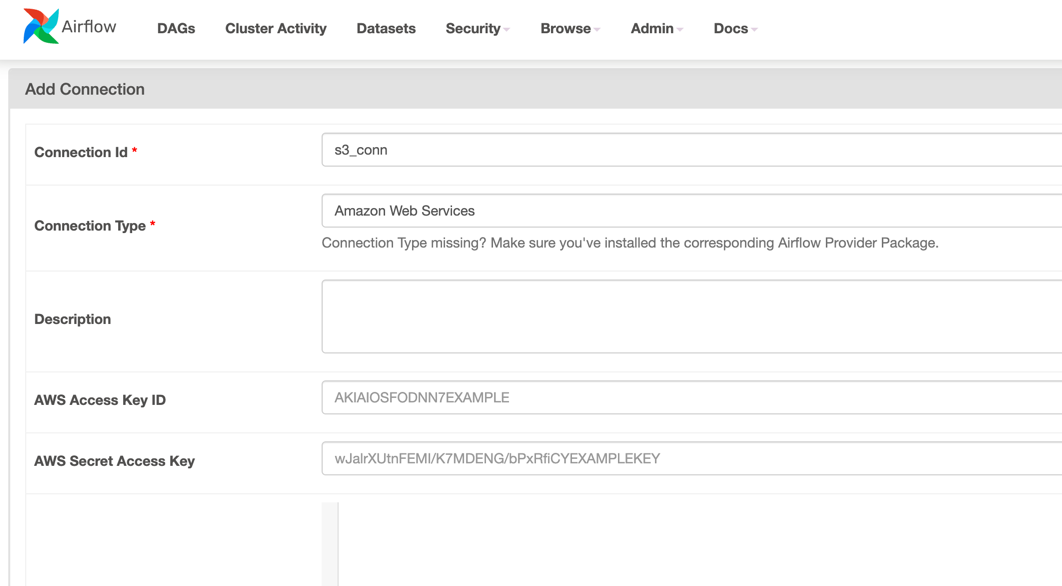

We simply navigate to Apache Airflow -> Admin -> Connections -> New Connection and create connection as such:

And insert the AWS Access Key ID and AWS Secret Access Key to allow Airflow to access S3 resources, and select Save

Creating the DAG

In order to create a DAG we copy the following code into dags/csv_loader.py

from airflow import DAG
from airflow.utils.dates import days_ago
from airgoodies.command.parser import CommandParser
from airflow.operators.python import PythonOperator

with DAG(
        dag_id='csv_loader',  # used as prefix for all variables in `airgoodies-variables.json`
        schedule_interval=None,
        start_date=days_ago(2),
        default_args={
            'owner': 'airflow'
        },
        catchup=False,
        tags=['csv_loader', 'aws', 'mongo', 'airgoodies:examples'],
) as dag:
    # Get the logger
    import logging

    logger: logging.getLogger = logging.getLogger('airflow.task')

    # Initialize the command parser
    command_parser: CommandParser = CommandParser(dag=dag)

    tasks: [PythonOperator] = []

    # Parse the commands from the `csv_loader_dag_config.yaml` in S3
    for _task in command_parser.get_commands():
        tasks = tasks >> _task.to_operator(dag=dag)

    tasks

This snippet of code, basically initializes a DAG and uses the fundamental airgoodies utility, CommandParser which will dynamically create our tasks from the YAML find that we will create in the next step.

Creating the configuration file (csv_loader_dag_config.yaml)

Now, as we said earlier, airgoodies has the ability to dynamically generate our tasks, by using a YAML file, instead of Python code.

In our case, we want to load a file from S3, parse it and save it to our MongoDB. For this, airgoodies already provides a pre-defined task that can handle all the boilerplate functionality, called load-from-s3-to-mongo-table.

Based on the above documentation, we need to crete a new file, let's name it csv_loader_dag_config.yaml as we specified in our task Variable csv_loader.airgoodies-dag-config-file-key, and insert the configuration:

load_from_s3_and_save: # This will appear as our task_id in airflow
  airgoodies_task: load_from_s3_to_mongo_table # The airgoodies pre-defined task name
  config: # The configuration of the task
    custom_transform_method: custom.transform.keep_athens # Use our custom transform method
    output_table_name: my_output_table # The name of the collection to save the result into

Save and upload in our S3 Bucket.

Creating the input data (population.csv)

Next step, is to create the data of the demo, simply create a new file population.csv and insert the following data:

city,population,year
Athens,3153000,2021
Athens,3154000,2022
Patras,215922,2021
Patras,213984,2011

Save, and upload on the S3 bucket as well.

Executing and troubleshooting

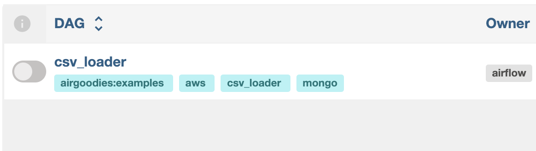

If everything is set up correctly up until now, we should be able to see a new DAG inside our Airflow home page:

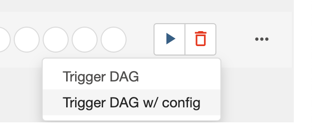

On the far right corner we select to Trigger DAG /w config:

And insert the following configuration and select Trigger:

{
  "input_file": "population.png"
}

After waiting a bit, we will notice that our is failing with the following message:

Traceback (most recent call last):
  File "/home/airflow/.local/lib/python3.11/site-packages/airflow/operators/python.py", line 192, in execute
    return_value = self.execute_callable()
                   ^^^^^^^^^^^^^^^^^^^^^^^
  File "/home/airflow/.local/lib/python3.11/site-packages/airflow/operators/python.py", line 209, in execute_callable
    return self.python_callable(*self.op_args, **self.op_kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/home/airflow/.local/lib/python3.11/site-packages/airgoodies/task/aws_tasks.py", line 65, in load_from_s3_to_mongo_table
    transform_method: Callable[[DataFrame], DataFrame] = getattr(
                                                         ^^^^^^^^
AttributeError: module 'custom.transform' has no attribute 'keep_athens'

The above message is expected because we have defined a method custom.transform.keep_athens as our custom_transform_method but we have not created it yet.

To remove this message, we need to edit our dags/custom/transform.py and add the following code:

import pandas as pd
import logging


def keep_athens(data: pd.DataFrame) -> pd.DataFrame:
    """
    Function that loads the pandas DataFrame and removes the lines that are not
    related to Athens.
    """
    logger: logging.Logger = logging.Logger('airflow.task')
    logger.info('Running custom transform method: keep_athens')

    # Remove each line not related to 'Athens'
    data.drop(data[data['city'] != 'Athens'].index, inplace=True)

    logger.info(f'New data:\n{data}')
    return data  # Return the DataFrame to write it in MongoDB

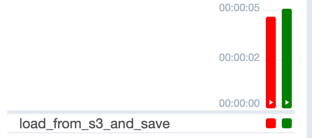

Save, wait a bit and re-execute the example. Now everythign should execute correctly:

To verify the resource, we need to log in to our MongoDB (mongodb://root:root@mongo:27017) and verify the saved result of our table my_output_table in data schema.

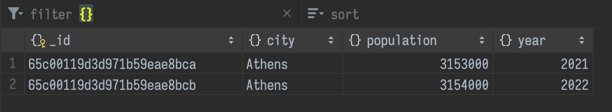

The result should look like this:

Conclusion

This example demonstrates just a short example of the abilities of airgoodies, and it was created using the airgoodies version v0.0.4

Author

Stavros Grigoriou (stav121)
